Neuinstallation ioBroker auf einem R-Pi 3 B+
Quellen:
Das Grundsystems
Installation
Die Verwendung von InfluxDB 2.x setzt ein 64-bit Betriebssystem voraus. Ein Desktop bzw. eine vollständige grafische Oberfläche wird nicht benötigt. Daher bezeichnet man ein solches System als „Headless“. Somit basiert dieses Heimautomatisierungsprojekt auf einem Raspberry Pi OS (32 oder 64-bit) Lite.
# Raspberry Pi Image besorgen wget https://downloads.raspberrypi.org/raspios_lite_armhf/images/raspios_lite_armhf-2023-02-22/2023-02-21-raspios-bullseye-armhf-lite.img.xz oder wget https://downloads.raspberrypi.org/raspios_lite_arm64/images/raspios_lite_arm64-2023-02-22/2023-02-21-raspios-bullseye-arm64-lite.img.xz rpi-imager #sudo touch /media/<benutzername>/bootfs/ssh #sync # SD-Karte aushängen und damit den R-Pi booten
Konfiguration
Während des Bootvorganges erhält der Raspberry eine IP Adresse vom Router. Diese kann über die entsprechende Weboberfläche des Routers ermittelt werden.
# Grundsystem auf den aktuellen Stand bringen: ssh -l pi <IP> sudo su apt-get update && sudo apt-get upgrade apt-get install aptitude mc apt-transport-https software-properties-common raspi-config nonint do_hostname iobroker raspi-config nonint do_onewire 0 raspi-config nonint do_change_locale de_DE.UTF-8 UTF-8 raspi-config nonint do_expand_rootfs raspi-config nonint do_update reboot # Feste IP für eth0 einstellen: mcedit /etc/dhcpcd.conf interface eth0 static ip_address=192.168.10.xx/24 static routers=192.168.10.1 static domain_name_servers=192.168.10.1
InfluxDB 1.x
Installation
sudo su #wget -qO- https://repos.influxdata.com/influxdata-archive_compat.key | sudo apt-key add - #source /etc/lsb-release #echo "deb https://repos.influxdata.com/${DISTRIB_ID,,} ${DISTRIB_CODENAME} stable" | sudo tee /etc/apt/sources.list.d/influxdb.list curl https://repos.influxdata.com/influxdata-archive.key | gpg --dearmor | sudo tee /usr/share/keyrings/influxdb-archive-keyring.gpg >/dev/null echo "deb [signed-by=/usr/share/keyrings/influxdb-archive-keyring.gpg] https://repos.influxdata.com/debian $(lsb_release -cs) stable" | sudo tee /etc/apt/sources.list.d/influxdb.list apt update apt install influxdb systemctl unmask influxdb systemctl enable influxdb systemctl start influxdb systemctl status influxdb
Konfiguration
sudo su influx > CREATE USER "admin" WITH PASSWORD 'influxdbadmin' WITH ALL PRIVILEGES > CREATE USER "iobroker" WITH PASSWORD 'iobroker' > CREATE DATABASE "iobrokerdb" > GRANT ALL ON "iobrokerdb" TO "iobroker" > exit # mcedit /etc/influxdb/influxdb.conf [http] enabled = true bind-address = ":8086" auth-enabled = true log-enabled = true write-tracing = false pprof-enabled = false https-enabled = false # systemctl restart influxdb
Datenbankgröße ermitteln
sudo su du -sh /var/lib/influxdb/data/iobrokerdb/
InfluxDB 2.x
Installation
sudo su cd ~ wget -q https://repos.influxdata.com/influxdata-archive_compat.key echo '393e8779c89ac8d958f81f942f9ad7fb82a25e133faddaf92e15b16e6ac9ce4c influxdata-archive_compat.key' | sha256sum -c && cat influxdata-archive_compat.key | gpg --dearmor | sudo tee /etc/apt/trusted.gpg.d/influxdata-archive_compat.gpg > /dev/null echo 'deb [signed-by=/etc/apt/trusted.gpg.d/influxdata-archive_compat.gpg] https://repos.influxdata.com/debian stable main' | sudo tee /etc/apt/sources.list.d/influxdata.list apt-get update apt-get install influxdb2 systemctl start influxdb systemctl status influxdb
Konfiguration
Die Konfiguration der InfluxDB erfolgt über den Browser via http://RASPI-IP:8086.
Grafana
Installation
sudo su wget -q -O /usr/share/keyrings/grafana.key https://apt.grafana.com/gpg.key echo "deb [signed-by=/usr/share/keyrings/grafana.key] https://apt.grafana.com stable main" | sudo tee -a /etc/apt/sources.list.d/grafana.list apt-get update # Install the latest OSS release: apt-get install grafana # Start System Service aka. Server systemctl daemon-reload systemctl start grafana-server systemctl status grafana-server systemctl enable grafana-server.service
Grafana Server: http://IP:3000
Grafana ohne Login
mcedit /etc/grafana/grafana.ini # [auth.anonymous] enabled = true systemctl restart grafana-server
ioBroker
Installation
sudo su # automatische Installation: curl -sLf https://iobroker.net/install.sh | bash -
Nach der Installation ist die ioBroker Instanz erreichbar unter http://<Raspberry-Pi-IP>:8081.

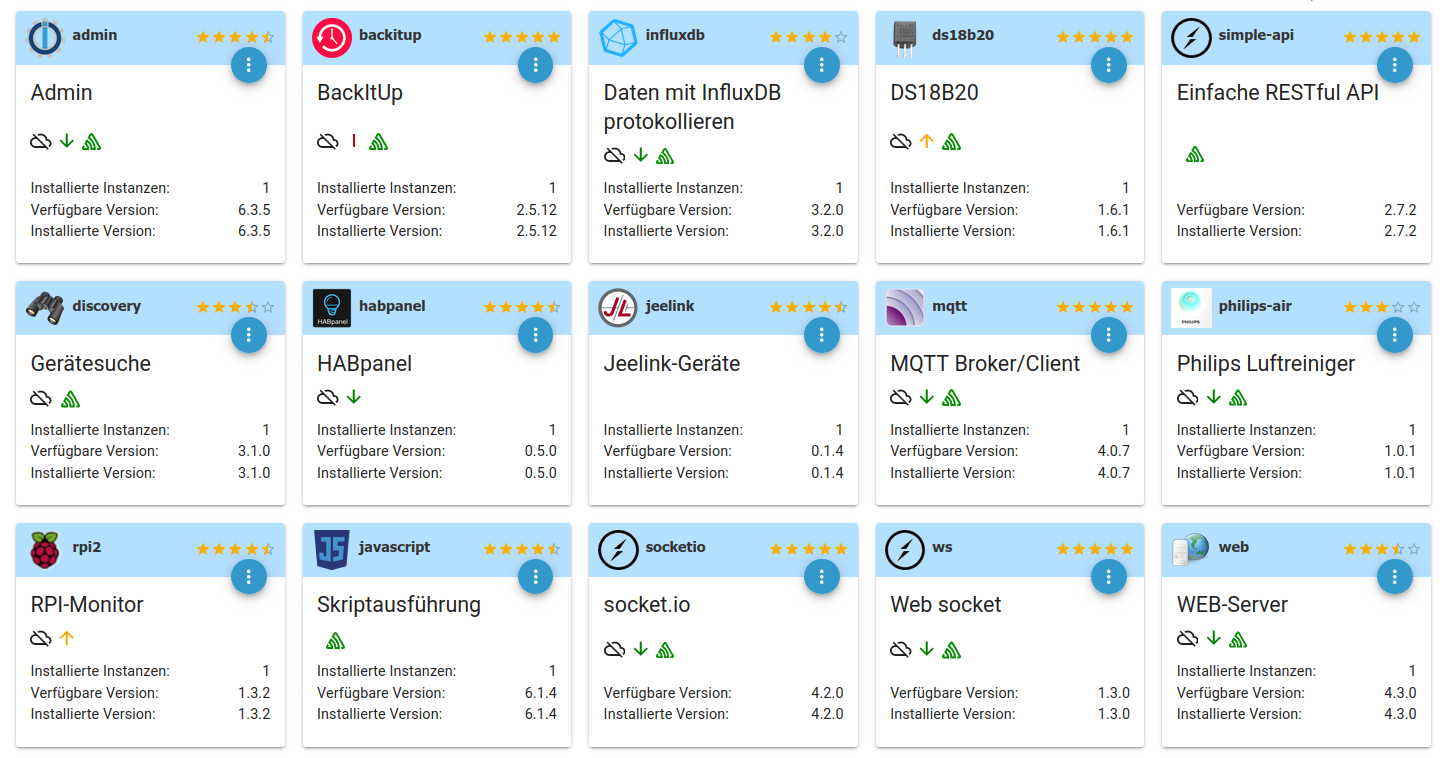

Adapter installieren
Als Adapter
werden alle Schnittstellen zu externen aber auch zu internen Datenquellen (z.B. Shelly Sensoren, Temperatur, Luftfeuchte, GPIO, 1-Wire, etc.) und Senken (Shelly Aktoren) bezeichnet.
- influxDB (Datenbank zur Speicherung von Messwerten)
- DS18B20 (Auslesen von 1-Wire Temperatursensoren)
- HABpanel (Steuerung von Aktoren vis Webseite)
- Jeelink-Geräte (Empfangen von 868mHz LaCrosse Temperatur- und Feuchtesensoren (hier z.B. TX29DTH-IT) mit Hilfe eines Jeelink Klones
- MQTT Broker (zur Datenverarbeitung von MQTT-fähigen Sensoren und Aktoren)
- Philips Luftreiniger (für die Anbindung eines Philips Air Purifier 4000i Series (Typ: AC4236/10)
- RPI-Monitor (Nutzung von GPIOs z.B. zum Einlesen eines Reed-Kontaktes für den Gaszähler)

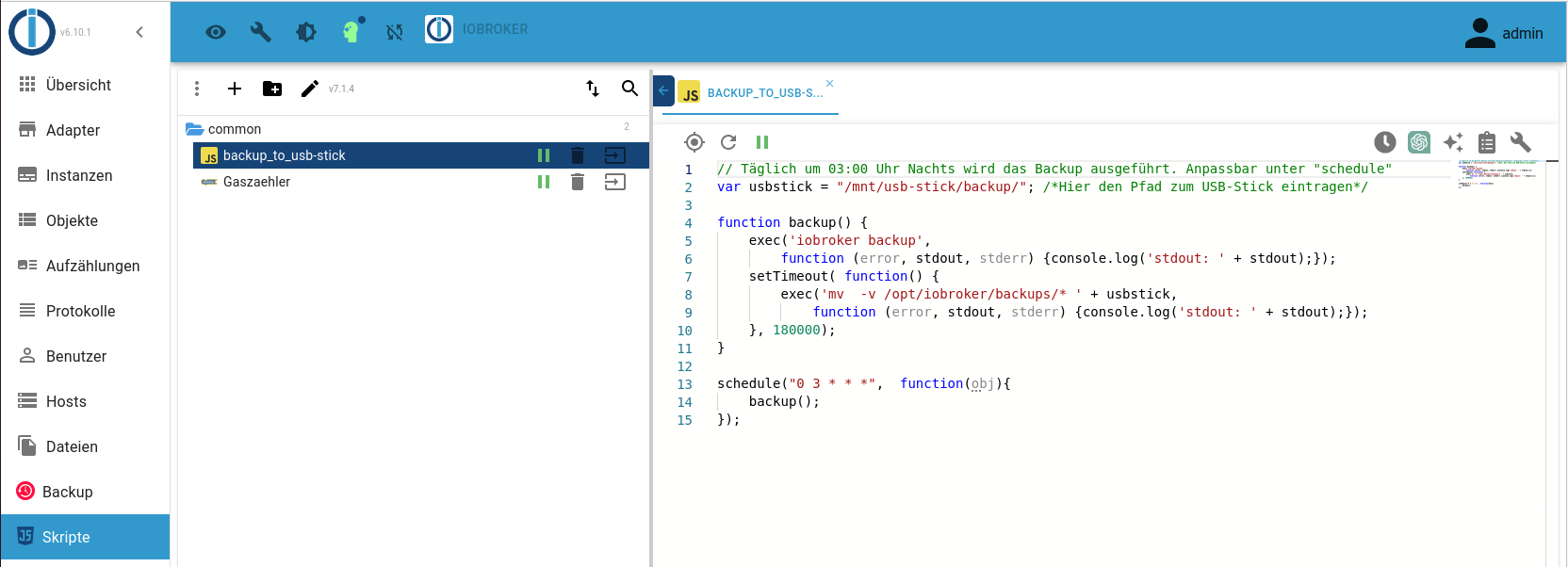

- Skriptausführung (Javascript und Blockly)
- WEB-Server (für HABpanel
Adapter konfigurieren
Die oben aufgeführten Adapter sind nach der Installation unter Instanzen
zu finden und müssen dort konfiguriert werden.
1-Wire
TBC
DS18B20
TBC

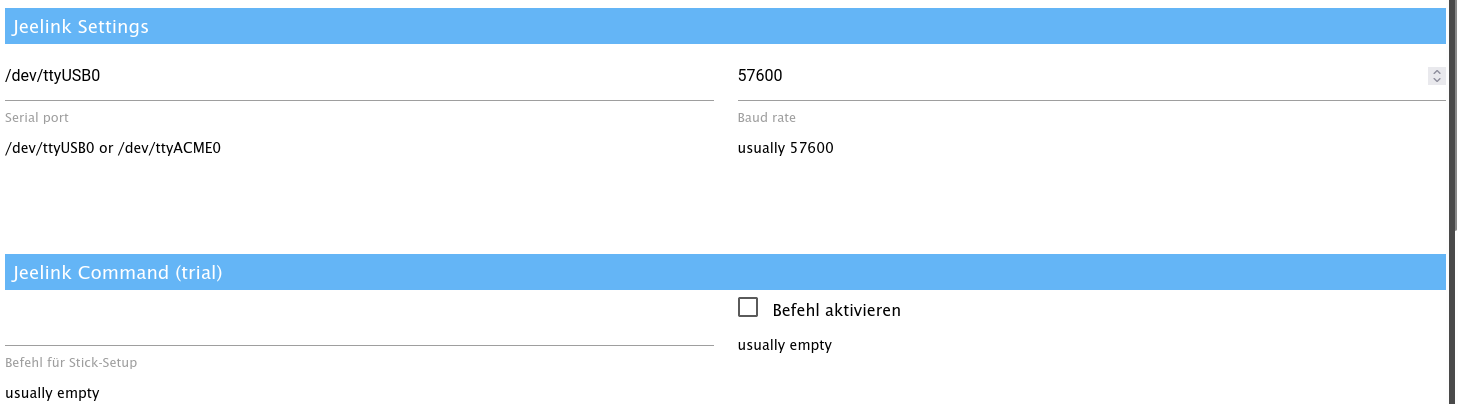

JeeLink
TBC - Empfänger bauen und programmieren → TBC

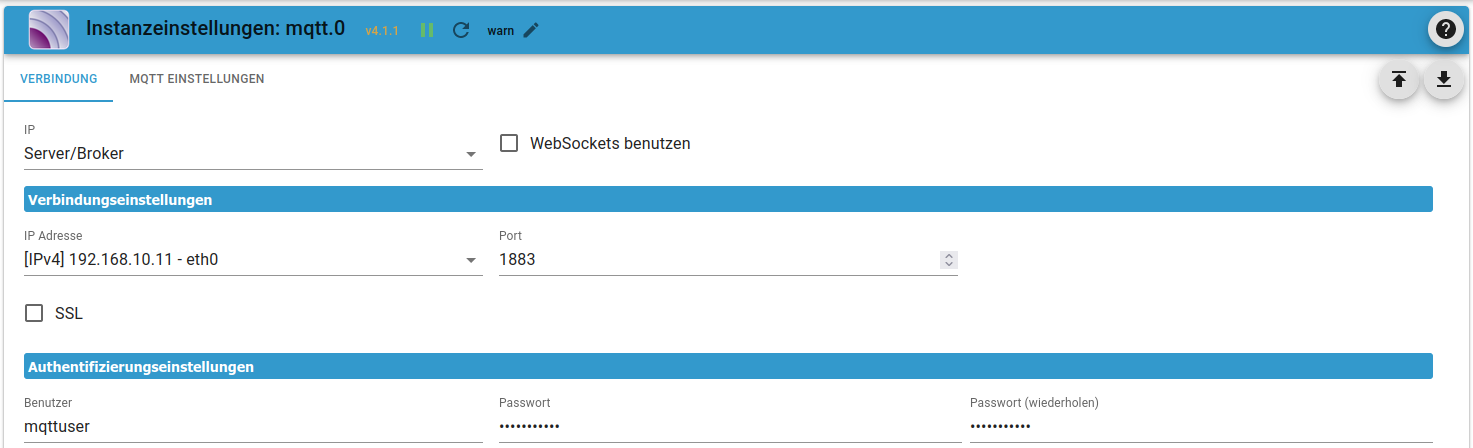

MQTT
TBC - für Shelly und IKEA Sensoren –> angepasste Firmware dokumentieren

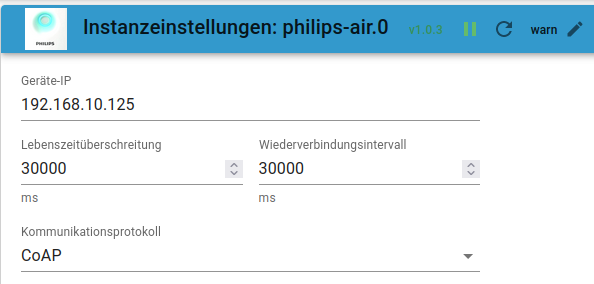

Philips
TBC
GPIO für Gaszähler
TBC

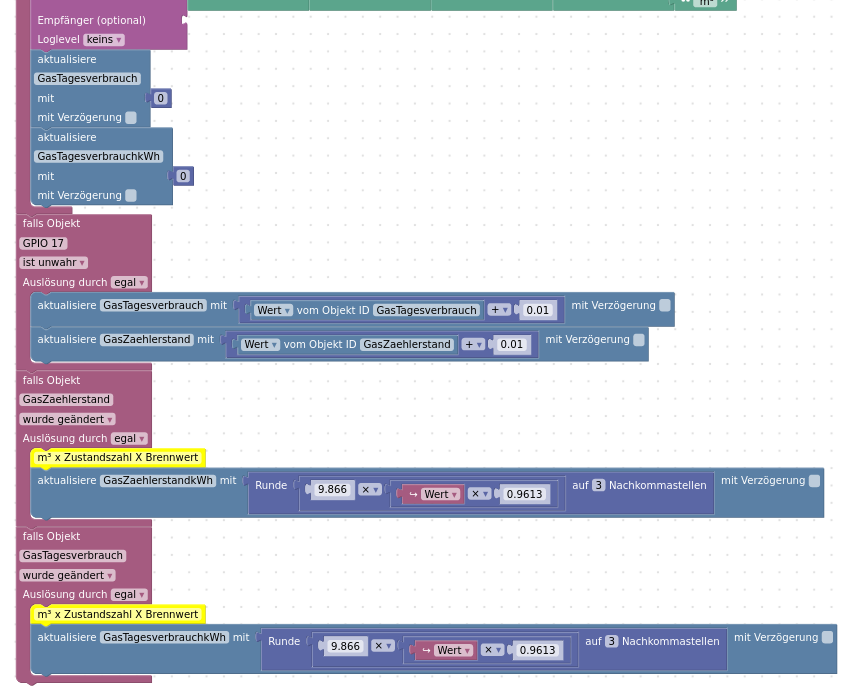

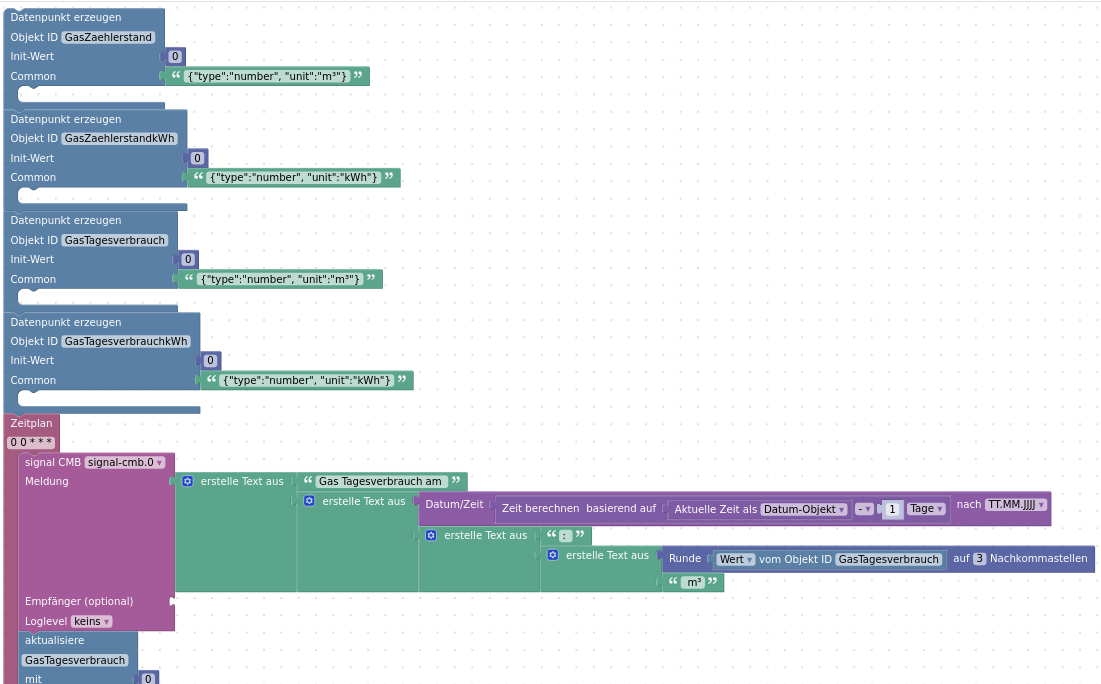

Blockly
TBC

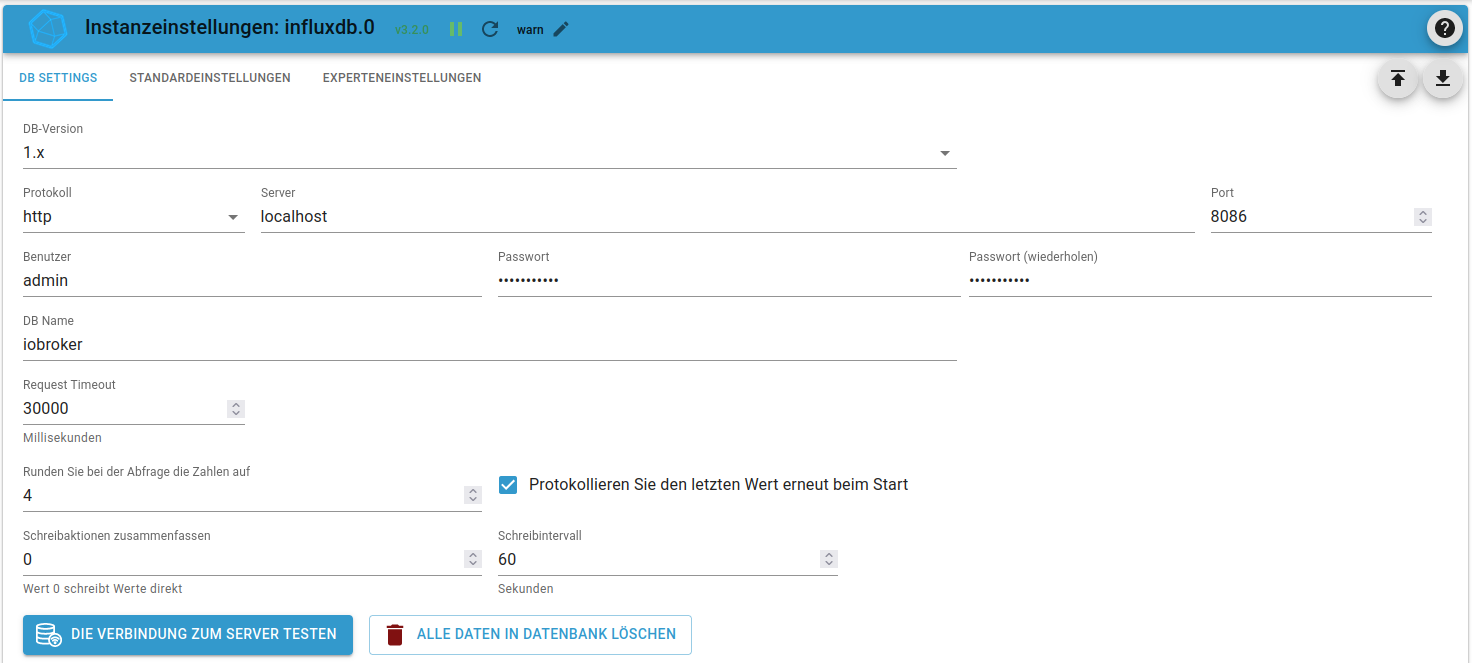

InfluxDB
TBC
